python challenge 9

http://www.pythonchallenge.com/pc/return/good.html

파이썬 챌린지 9



저 점들을 이으면 무슨 그림이 나올까요..

검은점들 RGB 값도 다르던데



먼저 HTML 코드부터 열어봅시다.

first와 second를 더하면 "?"

뭔가 나오나 봅니다.



x좌표 y좌표로 그림 그리는 줄 알았는데 저런 형태의 숫자 모음들

파이썬 챌린지 풀다가 어디서 본 적 있지 않나요.



파이썬 챌린지 8번 문제 HTML 코드에서 벌 모양 그림에 하이퍼 링크를 걸어놨었죠.

이미지 맵이라고 하는데

이미지 안에 poly(다각형)으로 coords(좌표)를 지정해 주고 good.html로 링크 해놓은 것이에요.





이미지에 그림을 그리려면

PIL 라이브러리에서 Image와 ImageDraw 모듈을 데려와야 해요.

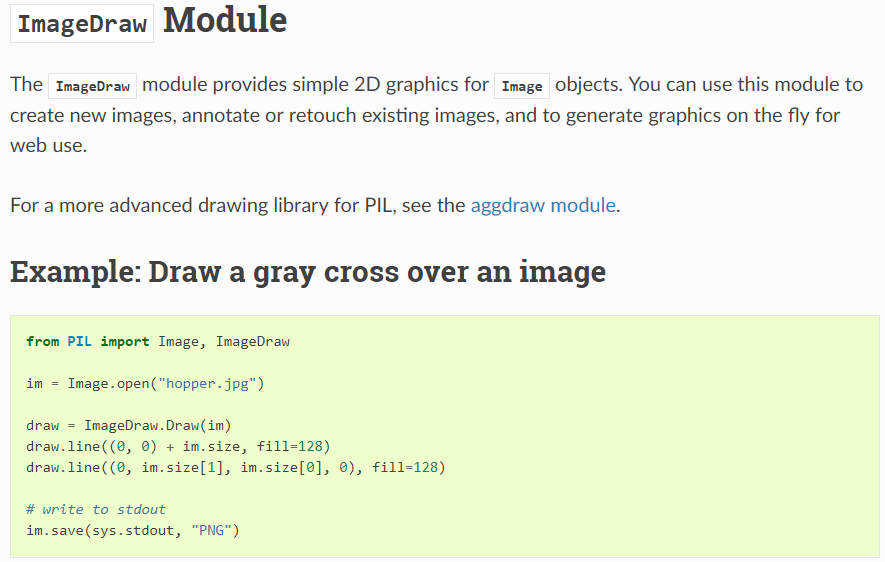

https://pillow.readthedocs.io/en/stable/reference/ImageDraw.html

ImageDraw Module — Pillow (PIL Fork) 6.1.0 documentation

대충 이런 식으로 사용하면 됩니다.





그럼 코드를 작성해볼까요.

진짜 별거 없어요.



from PIL import Image, ImageDraw

first = [146,399,163,403,170,393,169,391,166,386,170,381,170,371,170,355,169,346,167,335,170,329,170,320,170,
310,171,301,173,290,178,289,182,287,188,286,190,286,192,291,194,296,195,305,194,307,191,312,190,316,
190,321,192,331,193,338,196,341,197,346,199,352,198,360,197,366,197,373,196,380,197,383,196,387,192,
389,191,392,190,396,189,400,194,401,201,402,208,403,213,402,216,401,219,397,219,393,216,390,215,385,
215,379,213,373,213,365,212,360,210,353,210,347,212,338,213,329,214,319,215,311,215,306,216,296,218,
290,221,283,225,282,233,284,238,287,243,290,250,291,255,294,261,293,265,291,271,291,273,289,278,287,
279,285,281,280,284,278,284,276,287,277,289,283,291,286,294,291,296,295,299,300,301,304,304,320,305,
327,306,332,307,341,306,349,303,354,301,364,301,371,297,375,292,384,291,386,302,393,324,391,333,387,
328,375,329,367,329,353,330,341,331,328,336,319,338,310,341,304,341,285,341,278,343,269,344,262,346,
259,346,251,349,259,349,264,349,273,349,280,349,288,349,295,349,298,354,293,356,286,354,279,352,268,
352,257,351,249,350,234,351,211,352,197,354,185,353,171,351,154,348,147,342,137,339,132,330,122,327,
120,314,116,304,117,293,118,284,118,281,122,275,128,265,129,257,131,244,133,239,134,228,136,221,137,
214,138,209,135,201,132,192,130,184,131,175,129,170,131,159,134,157,134,160,130,170,125,176,114,176,
102,173,103,172,108,171,111,163,115,156,116,149,117,142,116,136,115,129,115,124,115,120,115,115,117,
113,120,109,122,102,122,100,121,95,121,89,115,87,110,82,109,84,118,89,123,93,129,100,130,108,132,110,
133,110,136,107,138,105,140,95,138,86,141,79,149,77,155,81,162,90,165,97,167,99,171,109,171,107,161,
111,156,113,170,115,185,118,208,117,223,121,239,128,251,133,259,136,266,139,276,143,290,148,310,151,
332,155,348,156,353,153,366,149,379,147,394,146,399]
second = [156,141,165,135,169,131,176,130,187,134,191,140,191,146,186,150,179,155,175,157,168,157,163,157,159,
157,158,164,159,175,159,181,157,191,154,197,153,205,153,210,152,212,147,215,146,218,143,220,132,220,
125,217,119,209,116,196,115,185,114,172,114,167,112,161,109,165,107,170,99,171,97,167,89,164,81,162,
77,155,81,148,87,140,96,138,105,141,110,136,111,126,113,129,118,117,128,114,137,115,146,114,155,115,
158,121,157,128,156,134,157,136,156,136]

im = Image.open("good.jpg")
draw = ImageDraw.Draw(im)
draw.line(first)
draw.line(second)
im.show()



대충 테스트용으로 짜긴 했는데

옳게 작성한 것 같아요.





까만 점들하고는 관계가 없어보여요...

깔끔하게 그려 보아요.



그림 그릴 이미지를 만들고 코드 한줄만 바꿔서 실행해봅시다.



from PIL import Image, ImageDraw

first = [146,399,163,403,170,393,169,391,166,386,170,381,170,371,170,355,169,346,167,335,170,329,170,320,170,
310,171,301,173,290,178,289,182,287,188,286,190,286,192,291,194,296,195,305,194,307,191,312,190,316,
190,321,192,331,193,338,196,341,197,346,199,352,198,360,197,366,197,373,196,380,197,383,196,387,192,
389,191,392,190,396,189,400,194,401,201,402,208,403,213,402,216,401,219,397,219,393,216,390,215,385,
215,379,213,373,213,365,212,360,210,353,210,347,212,338,213,329,214,319,215,311,215,306,216,296,218,
290,221,283,225,282,233,284,238,287,243,290,250,291,255,294,261,293,265,291,271,291,273,289,278,287,
279,285,281,280,284,278,284,276,287,277,289,283,291,286,294,291,296,295,299,300,301,304,304,320,305,
327,306,332,307,341,306,349,303,354,301,364,301,371,297,375,292,384,291,386,302,393,324,391,333,387,
328,375,329,367,329,353,330,341,331,328,336,319,338,310,341,304,341,285,341,278,343,269,344,262,346,
259,346,251,349,259,349,264,349,273,349,280,349,288,349,295,349,298,354,293,356,286,354,279,352,268,
352,257,351,249,350,234,351,211,352,197,354,185,353,171,351,154,348,147,342,137,339,132,330,122,327,
120,314,116,304,117,293,118,284,118,281,122,275,128,265,129,257,131,244,133,239,134,228,136,221,137,
214,138,209,135,201,132,192,130,184,131,175,129,170,131,159,134,157,134,160,130,170,125,176,114,176,
102,173,103,172,108,171,111,163,115,156,116,149,117,142,116,136,115,129,115,124,115,120,115,115,117,
113,120,109,122,102,122,100,121,95,121,89,115,87,110,82,109,84,118,89,123,93,129,100,130,108,132,110,
133,110,136,107,138,105,140,95,138,86,141,79,149,77,155,81,162,90,165,97,167,99,171,109,171,107,161,
111,156,113,170,115,185,118,208,117,223,121,239,128,251,133,259,136,266,139,276,143,290,148,310,151,
332,155,348,156,353,153,366,149,379,147,394,146,399]
second = [156,141,165,135,169,131,176,130,187,134,191,140,191,146,186,150,179,155,175,157,168,157,163,157,159,
157,158,164,159,175,159,181,157,191,154,197,153,205,153,210,152,212,147,215,146,218,143,220,132,220,
125,217,119,209,116,196,115,185,114,172,114,167,112,161,109,165,107,170,99,171,97,167,89,164,81,162,
77,155,81,148,87,140,96,138,105,141,110,136,111,126,113,129,118,117,128,114,137,115,146,114,155,115,
158,121,157,128,156,134,157,136,156,136]

im = Image.open("blackboard.jpg")
draw = ImageDraw.Draw(im)
draw.line(first)
draw.line(second)
im.show()





깔끔하게 소 그림을 그렸습니다.



cow.html로 갑시다~



?





bull.html로 갑시다.
